Creality Otter 3D Scanner

Handheld Multi 3D Scanner

Model:CR-Scan Otter

CR-Scan Otter Wide Size Range 3D Scanner

CR-Scan Otter proves to be versatile in 3D scanning, addressing personal and commercial requirements. It excels in detailed 3D scanning across a wide range of object sizes, leveraging a dual lens setup. It simplifies scanning of traditionally challenging materials, such as black or metallic items, without the need for additional sprays.

Having eight infrared lights, the scanner improves its capability to track marker points on objects without clear features, resulting in precise scans. This marker mode is especially beneficial for high precision objects. The scanner is engineered with advanced DOE (Diffractive Optical Element) 3D structure-light technology, as an accuracy of up to 0.02mm and a 3D resolution of 0.05-2mm. It has an object scanning range of 10mm to 2000mm.

Feature:

🤗High-Precision and Fast 3D Scanning: The Otter 3D Scanner offers industry-leading accuracy of 0.02 mm and fast scanning speeds of 20 frames per second. With this level of precision, it can capture even the smallest details of an object, allowing you to create highly accurate 3D models quickly and easily.

🤗Unmatched Scanning Performance: The CR-Scan Otter scanner features an innovative four-lens stereo vision system that handles both large and small scans superbly, ranging from 0.39 to 78.8 inches in size. It includes a set of long-focal-length dual lenses for scanning small objects with rich details and a set of short-focal-length dual lenses for capturing larger objects in a single range of up to 1350 mm x 840 mm at 1000 mm, ensuring improved tracking and scanning of larger objects.

🤗Unique Face Algorithm with Eye Protection: The face and body mode is equipped with a unique facial mapping algorithm that enables the capture of intricate details, including hair. This mode uses near-infrared light, invisible to the human eye, making it safe and comfortable for your eyes. You can scan skin and faces worry-free.

🤗Stable Scanning and Easy Operation: Equipped with 8 infrared LEDs, 2 white LEDs, 4 stereo depth cameras, and 1 RGB camera, the Otter can capture clear scan data and generate stable results outdoors. Three touch-sensitive buttons on the scanner make it easy to start/pause scans and adjust the exposure of the depth camera on the go, allowing you to precisely control your scanning process. 🤗User-Friendly Software: It supports multiple data format outputs, including OBJ, STL, and PLY. This compatibility with a wide range of CAD, 3D modeling, and design software makes it versatile and suitable for various applications such as modeling, animation, presentation, printing, and design, expanding the possibilities

3d scan SMALL TO LARGE OBJECTS 10mm to 2 meters in size.

Innovative Four-Lens Stereo Vision

The CR-Scan has two pairs of focal lenses catering to small and large object scanning. Close up for small object or set back to capture a larger objects.

Small Object 3D Scanning

Scan small objects to 10mm in size with a 3D Resolution of 0.05mm.

Large Object 3D Scanning

Ideal for automotive applications. Scan large objects up to 2 meters in size with a 3D Resolution of 2mm.

3D Scan in Daylight

Engineered with advanced DOE (Diffractive Optical Element), the CR Scan Otter 3D scans using Infrared Structured Light which enables it to scan in full sun light in indoors.

24-Bit Full Color Scanning

Equipped with million pixel full-color RGB cameras. Object color can be captured and mapped onto the mesh model.

Marker Scanning Mode

Scan with marker points for high dimensional accuracy on parts when scanning parts with fewer features.

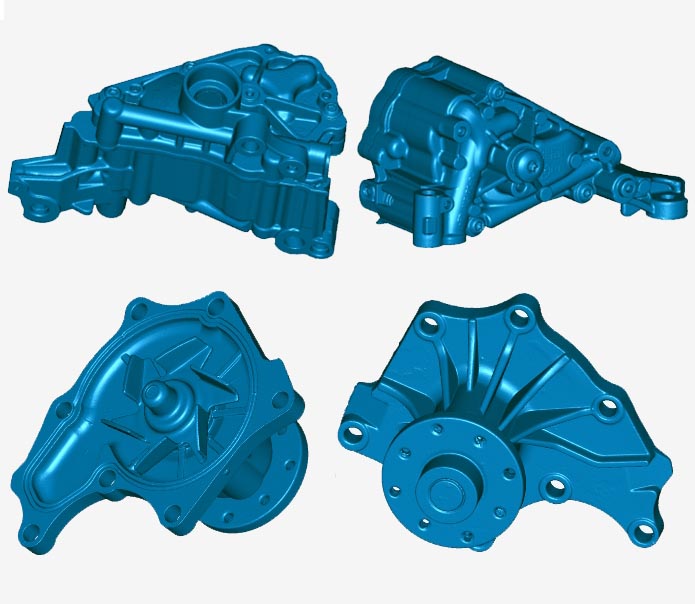

3D Scan Black & Metallic Objects such as car parts, tires can castings without the need of scanning spray.

3D Scan in Low Light Environments

The inbuilt dual LEDs ensure faithfully reproduced precise color textures in in low light conditions.

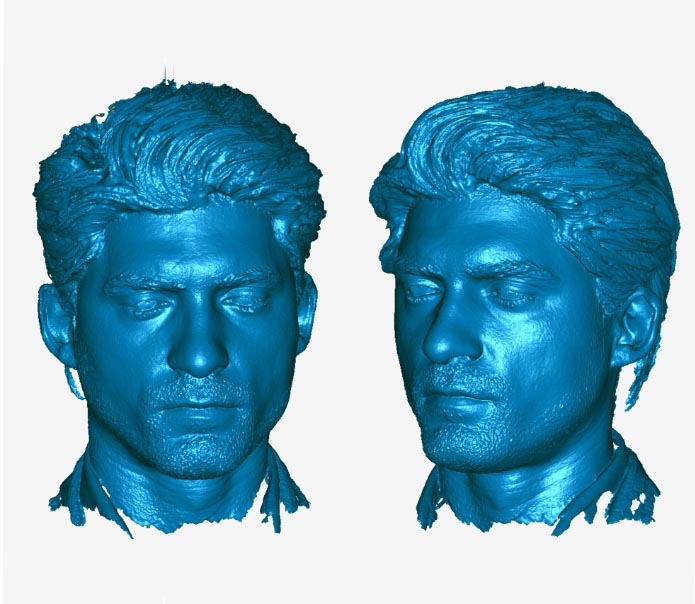

Face & Body Scan Mode

Utilizing Near-Infrared Light, invisible to the human eye, can safely and easily capture fine details and hair with ease.

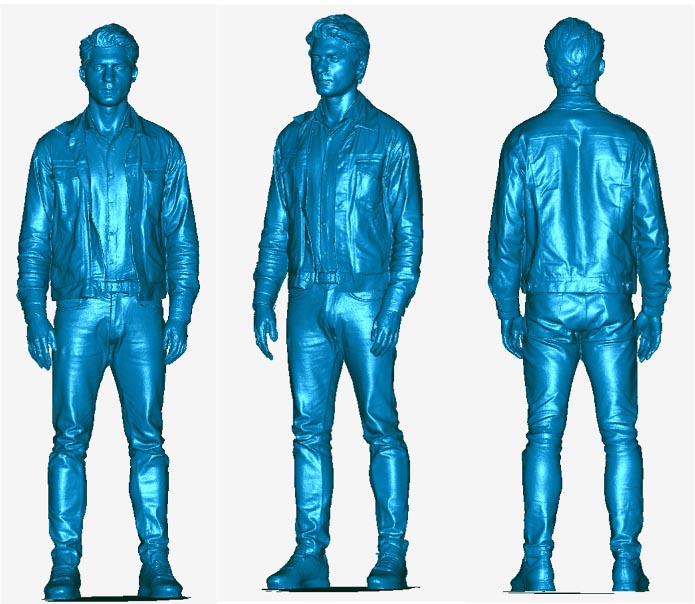

A body scan in full color can be captured within 2 minutes.

Powerful Scanning Software

The powerful Creality Scan, intuitively leads you step-by-step through the calibration, scanning and mesh alignment process. Once a scan is complete, the software will allow you to generate an optimsed water tight mesh ready for your down stream application.

Cross-Platform Compatibility

More Features coming….

New accessories including Wireless Scanning using Android and iPhone iOS coming soon…
